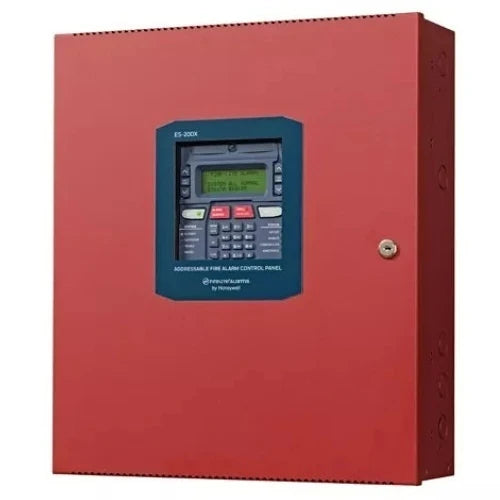

Fire-Lite ES-200X Addressable Fire Alarm Control Panel 198 Point

The Fire-Lite ES-200X is an intelligent addressable fire alarm control panel designed for reliable fire detection, flexible system configuration, and streamlined installation. Featuring a single Signaling Line Circuit (SLC) supporting up to 198 addressable devices, the ES-200X includes a factory-installed IPOTS-COM dual-technology communicator for IP and POTS central station reporting.

Designed as a direct replacement for the MS-9200UDLS, the ES-200X combines advanced addressable technology with familiar Fire-Lite programming, making it ideal for both new installations and system upgrades.

Key Features

• 198-Point Capacity: Supports up to 99 addressable detectors and 99 modules on a single SLC loop.

• Integrated Communicator: Pre-installed IPOTS-COM provides IP and traditional telephone-line communication.

• Flexible Circuit Configuration: Supports NFPA Class A and Class B SLC wiring configurations.

• Extended Wiring Distance: Supports SLC wiring runs up to 10,000 feet (3,000 m) in LiteSpeed mode using twisted, unshielded wire.

• Four Programmable NACs: Independently configurable notification appliance circuits supporting Class A or Class B operation.

• Strobe Synchronization: Selectable synchronization for System Sensor, Wheelock, and Gentex notification appliances.

• Emergency Communication Integration: Supports automatic activation of the ECC-50/100 Emergency Command Center and ECC-FFT firefighter telephone system.

• Seismic Certification: Approved for seismic applications when installed with the appropriate mounting kit.

• Simplified System Upgrades: Direct replacement for the MS-9200UDLS with familiar Fire-Lite addressable programming.

Included Components

The ES-200X comes complete with the main circuit board and display, factory-installed IPOTS-COM communicator, chassis and transformer, backbox with door, and installation hardware, including screws, cables, and key.
